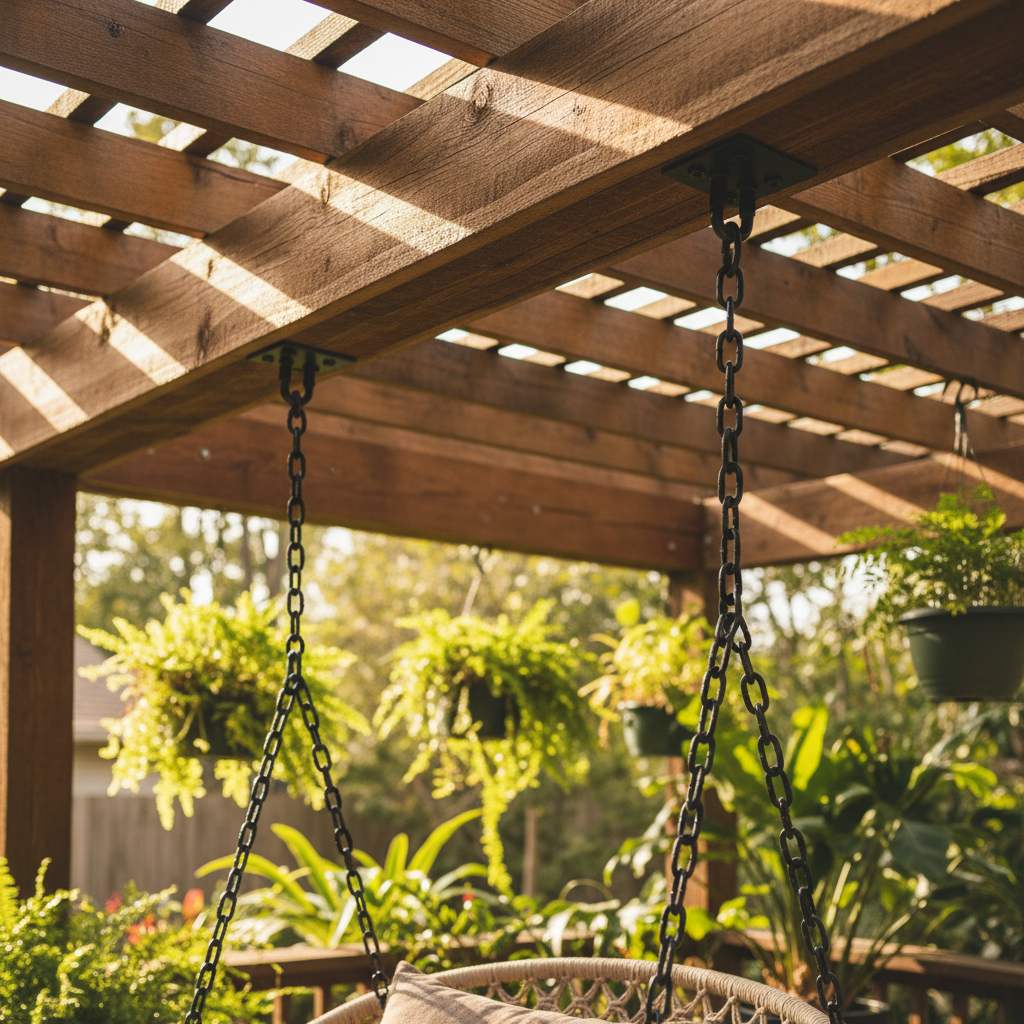

Why Your Porch Swing Hanger Setup Fails Under Load — and How to Fix It Without Replacing Your Whole Beam

July 13, 2026

The Hidden Danger in Most Porch Swing Setups

There's something deeply satisfying about a porch swing — the gentle back-and-forth, a cup of coffee in hand, the sound of a summer evening. But there's also something deeply alarming about the moment that swing jerks to one side, emits a sharp creak, or — worst of all — pulls a hanger bolt clean out of the beam above. It happens more often than people expect, and almost always for the same preventable reasons.

If you've been searching for a playground swing hanger heavy duty porch setup solution, you're probably either planning a new install and want to do it right the first time, or you've already experienced a failure and you're done guessing. Either way, this guide is for you. We're going to dig into exactly why swing hanger setups fail, what the load math actually looks like, and the step-by-step decisions you need to make before you drive a single bolt into your ceiling.

Why Most Swing Hanger Failures Aren't About the Hanger Itself

Here's a counterintuitive truth: the hanger hardware almost never fails first. In the vast majority of porch swing accidents and near-misses, the failure point is one of three things:

Undersized or rotted wood in the beam or joist
Wrong fastener type for the mounting surface
Dynamic load miscalculation — the difference between static weight and swing-in-motion force

Let's talk about that last point because it surprises most people. When you're just sitting still, your weight is a static load. The moment you start swinging, you're generating what engineers call a dynamic load — a force that can be 2x to 3x your body weight at the peak of each arc. So if two adults weigh a combined 350 lbs, the actual peak force on your swing hangers at full swing height can easily reach 700–1,000 lbs. That's on top of the weight of the swing itself.

This is why products rated for over 5,000 lb capacity aren't overkill — they're the rational choice when you account for dynamic forces, multiple users, and the long-term fatigue stress on fasteners exposed to weather cycles.

Understanding the Load Path: From Seat to Structure

Before you buy any hardware, you need to understand the "load path" — the route that force travels from the person sitting in the swing, up through the chain or rope, through the hanger, into the fastener, and finally into the structural beam. Every link in that chain matters.

Step 1: Evaluate Your Beam

For a porch swing, the typical mounting point is a ceiling joist or a dedicated structural beam in your porch ceiling. The minimum recommendation from most structural guidelines is a 4×6 or larger solid wood beam running perpendicular to the direction of swing. Here's what to check:

Species and grade: Southern Yellow Pine or Douglas Fir rated #2 or better is ideal. Soft, low-grade lumber is a risk.
Moisture and rot: Press a screwdriver into the beam. If it sinks in easily, the wood is compromised. Do not hang anything from it until it's repaired or replaced.
Span: A beam that spans more than 8–10 feet without intermediate support may deflect too much under dynamic swing loads, even if it's technically strong enough.
Existing fastener holes: Old holes reduce the holding power of the wood in that area. Space new hardware at least 6 inches from any old anchor point.

Step 2: Know Your Fastener Options

There are three common ways swing hangers attach to overhead beams, and each has very different performance characteristics:

Eye bolt with nut through the beam (through-bolt): This is the strongest option. The bolt passes all the way through the beam and is secured with a washer and nut on the top side. Holding strength is limited primarily by the structural capacity of the beam itself, not the fastener.
Lag bolt screwed into the beam: Faster to install, but holding power depends entirely on thread engagement in the wood. In dry, high-grade lumber, a properly sized lag (typically 5/16" or 3/8" diameter, 3+ inches of thread engagement) is very strong. In aged or slightly punky wood, lag bolts can work loose over time — especially under repeated dynamic loads.
Joist hanger or structural bracket: Used when the beam orientation doesn't allow for a direct vertical bolt. These bracket systems distribute load across a wider area of wood but require precise installation to work correctly.

For a heavy duty porch swing hanger setup, I almost always recommend the through-bolt approach when the beam allows access from above. It's more work, but the peace of mind is worth every minute.

Choosing the Right Swing Hanger Hardware

Once your beam is confirmed solid and your fastener strategy is decided, it's time to choose the actual swing hanger. Here's what separates a genuinely reliable hanger from one that looks fine in a product photo but fails in the real world:

Material and Coating

Steel is the standard, but not all steel hangers are treated the same way. For outdoor porch applications, look for:

Galvanized or powder-coated steel: These finishes resist rust significantly better than bare steel. If you live in a humid coastal climate, this matters a lot.
Zinc-plated fasteners: The included screws and bolts should also be corrosion-resistant. A great hanger paired with bare steel screws will still rust at the connection point.

Swivel vs. Fixed Hangers

This is one of the most important — and most overlooked — distinctions:

Fixed hangers mount in a single orientation. They work fine for straightforward porch swings, but they generate twisting stress on the fastener if the swing doesn't hang perfectly plumb.
360-degree swivel hangers allow the swing to move in any direction without putting torsional (twisting) stress on the mounting bolt. For porch swings where kids might push sideways, for yoga swings, or for any application involving rotation, a swivel design dramatically reduces stress fatigue at the fastener point.

The heavy duty black swing hangers with over 5,000 lb capacity are a good example of what a reliable porch-rated hanger looks like — built for this exact combination of high dynamic load and outdoor exposure, with mounting hardware included so you're not guessing at fastener compatibility.

Rated Capacity and Safety Factor

Any load rating you see on a swing hanger is typically the static load limit. As we discussed, dynamic swing forces can be 2–3x your body weight. So if you want to support two adults (let's say 400 lbs combined, to be conservative), you actually want a hanger rated for at least 800–1,200 lbs in static terms — which is exactly why "5,000 lb capacity" hardware isn't absurd. The generous rating gives you a large safety margin even after accounting for dynamic forces.

Spacing Your Hangers Correctly

For a standard porch swing, you'll use two hangers per swing (one on each end). The horizontal spacing between them should match the width of your swing's mounting points — typically 18 to 24 inches apart for most commercial porch swings. However, there's an additional variable: the angle of the chains or ropes.

Ideally, the chains should hang nearly vertical, with no more than a 10–15 degree outward angle. Wide chain spreads look aesthetically elegant but create outward horizontal force vectors that are harder on your fasteners. If your beam is narrow and you can't achieve proper chain geometry, consider adding a wooden spreader bar or a purpose-built swing frame instead of forcing a beam-mount installation.

Step-by-Step: Installing Heavy Duty Swing Hangers on a Porch Beam

Here's the actual installation process, assuming you've confirmed your beam is structurally sound and you're using a through-bolt method:

Mark your hanger positions. Measure the swing width, add equal margins from each side, and mark both hole locations on the underside of the beam. Double-check that both points are centered on the beam width, not near the edges.
Drill a pilot hole. Use a drill bit slightly smaller than your bolt diameter. Drill straight up — a misaligned hole causes the bolt to bear at an angle, reducing strength. A right-angle drill guide helps here.
For through-bolts: drill all the way through. You'll need access above the beam (through the porch ceiling decking or from the attic) to run the bolt through and add a washer and nut on the top side.
Install the hanger onto the bolt before tightening. Make sure the swivel mechanism moves freely in all directions after installation — if the hanger binds against the beam or a washer, it will generate extra stress during use.
Torque to spec and check. Tighten firmly but don't over-torque (you can crush wood fibers and reduce holding power). Then re-check after 24 hours — wood compresses slightly under load, and fasteners sometimes need a small re-tightening.
Load test before use. Before anyone sits in the swing, apply a static load of at least 1.5x your expected maximum user weight by hanging sandbags or weights from the swing seat for 30 minutes. Inspect all connection points afterward.

Playground Swing Setups: When the Porch Isn't the Structure

Everything above applies when you're mounting to an existing porch structure. But if you're setting up a freestanding playground swing frame — the A-frame style you see in backyard swing sets — the same hanger hardware applies, but the structural analysis shifts to the frame material and design.

For wooden playground frames:

Use 4×6 or 4×4 pressure-treated lumber rated for ground contact (especially for the legs that touch the ground or are set in concrete).
The A-frame legs should splay outward at 15–20 degrees from vertical for lateral stability. A straight-legged frame can tip forward or backward under swing load.
The top beam should be secured with structural hardware — not just toe-nailed joints. Metal connector plates or through-bolted saddle brackets are the minimum standard.
Set leg bases in concrete footings or use ground anchors rated for playground equipment. This is non-negotiable for any setup kids will use regularly.

If you're building a dedicated playground frame, heavy duty swing hangers with included mounting hardware take the guesswork out of fastener compatibility and give you a solid starting point for the hanger-to-beam connection.

Seasonal Maintenance: The Part Most People Skip

Even a perfectly installed swing hanger setup needs periodic inspection. The combination of UV exposure, moisture, wood movement, and repeated dynamic load cycles means things can change over time. Here's a simple annual checklist:

Inspect the beam for new cracks, discoloration, or soft spots. Pay special attention to areas around the fasteners — water can wick into drilled holes and accelerate rot from the inside out.
Check fastener tightness. Wood shrinks and swells with seasonal humidity changes. Fasteners that were tight in summer may loosen by spring. Re-torque as needed.
Inspect the hanger swivel mechanism. Clean out any debris, check for corrosion at pivot points, and lubricate with a dry lubricant (WD-40 leaves a residue that attracts grit; a dry PTFE spray is better).
Look at chains and attachment hardware. Stretched links, worn shackles, and cracked S-hooks are all signs it's time to replace the connecting hardware — not just the hanger.
Check weight limits against actual users. Kids grow. What was fine last summer might now be approaching rated capacity.

Quick-Reference Checklist: Before You Install

✅ Beam confirmed as solid wood, no rot, appropriate species and grade
✅ Beam size is 4×6 or larger for porch swings; 4×4 minimum for playground frames
✅ Fastener type chosen (through-bolt preferred over lag bolt for high dynamic loads)
✅ Hanger is swivel-style with corrosion-resistant finish
✅ Hanger static load rating is at least 3x expected maximum user weight
✅ Chain or rope angle is no more than 15 degrees from vertical
✅ Hardware is torqued and re-checked after 24 hours
✅ Static load test performed before first use
✅ Annual inspection schedule is on the calendar

A playground swing hanger heavy duty porch setup done right is one of those home projects that rewards careful planning disproportionately. The difference between a swing that feels rock-solid for ten years and one that fails dangerously often comes down to decisions made before a single hole is drilled. Take the time to evaluate your structure, choose hardware with a generous load margin, and build in a regular inspection habit — and that porch swing will be exactly what it should be: a source of pure, uncomplicated joy.
