From Confused to Confident: A Step-by-Step Ring Solar Panel Pole Mount Bracket Setup Guide for Camera Owners

August 3, 2026

Why Your Ring Camera Keeps Dying (And What's Really Going On)

You bought a Ring camera to feel safer at home. You set it up, checked the app, and felt good about it — for about two weeks. Then the battery notifications started. Then the camera went offline right when you needed it most. Sound familiar?

The problem usually isn't the camera itself. It's the power source. If your Ring camera is mounted somewhere inconvenient for charging, or if you've been meaning to add a solar panel but aren't sure how to attach it to a pole or post in your yard, this guide is written exactly for you. We're going to walk through the entire Ring solar panel pole mount bracket setup process, from understanding why placement matters to tightening the final bolt — so your camera stays powered around the clock without you lifting a finger every few weeks.

Understanding the Ring Solar Panel Ecosystem First

Before we get into mounting hardware, it helps to understand what Ring's solar panel actually does — and what it doesn't do.

Ring sells solar panels designed specifically for their camera lineup: the standard Ring Solar Panel and the Ring Super Solar Panel (the larger, higher-output version). These panels trickle-charge the camera's internal battery continuously when sunlight is available. They don't fully replace the battery — rather, they dramatically extend the time between manual charges. In ideal conditions with adequate sunlight, many users report going months or even an entire season without ever removing the battery.

The key phrase there is ideal conditions. And ideal conditions almost always come down to where and how the solar panel is mounted.

Why a Pole Mount Changes Everything

Most Ring camera setups involve mounting the camera itself on a wall or soffit. But the solar panel doesn't have to go in the same spot. In fact, forcing the solar panel to follow the camera's wall location is one of the biggest mistakes people make. Your camera might face north to cover the front driveway, but that means its solar panel faces north — the worst possible direction for solar charging in the Northern Hemisphere.

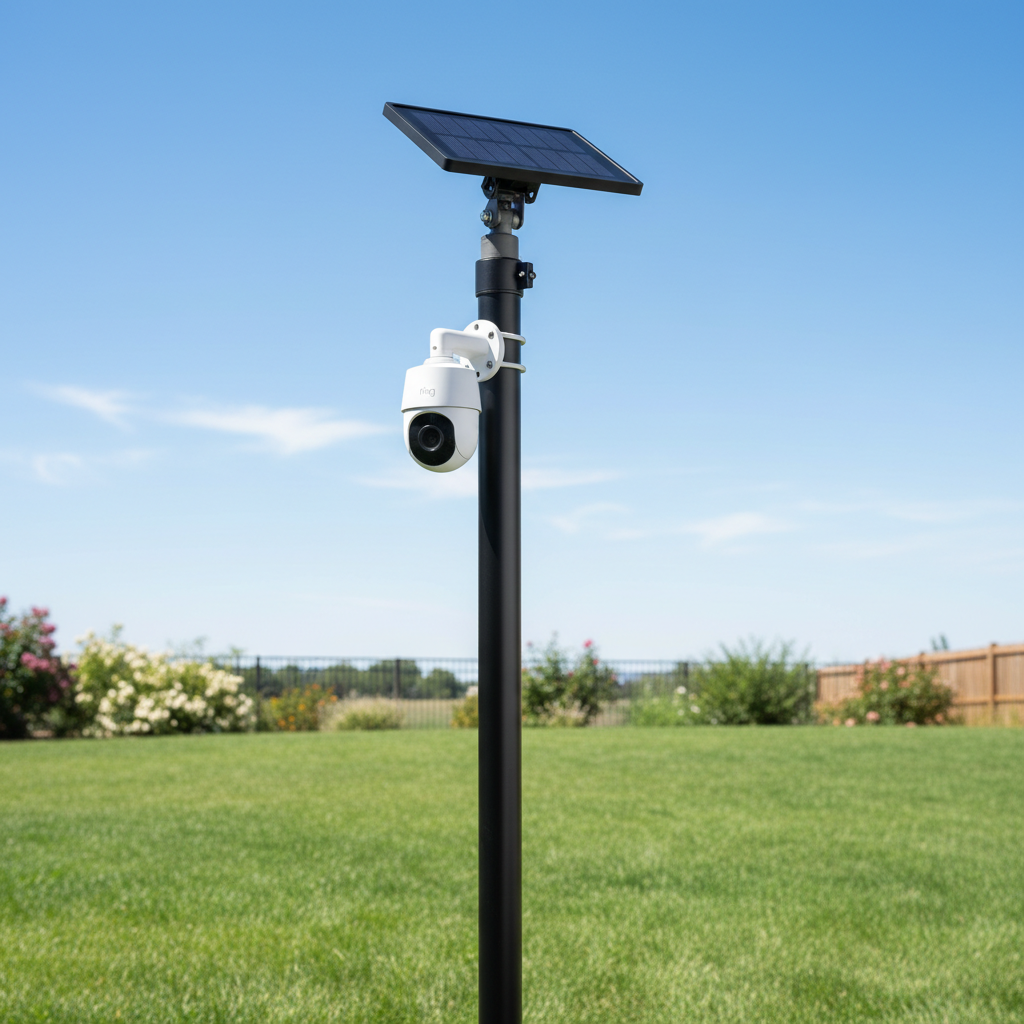

A pole mount bracket solves this by letting you position the solar panel independently, on a separate post or pole in your yard, aimed precisely at the sun. The panel connects to the camera via a weather-resistant cable, giving you the freedom to optimize for sunlight without compromising your camera's viewing angle.

What You'll Need Before You Start

A successful Ring solar panel pole mount bracket setup depends on having the right components in place before you pick up a drill. Here's a checklist of what to gather:

Your Ring solar panel — standard or Super Solar Panel, depending on your camera model
A compatible pole mount bracket — this is the piece that physically clamps or bolts around a pole and holds the solar panel at an adjustable angle
A pole or post — most brackets fit standard 1-inch to 1.5-inch diameter poles; check the bracket specs before buying
The Ring camera's solar charging cable — usually included with the panel, typically around 13 feet long
Basic tools — Phillips screwdriver, adjustable wrench, level (optional but helpful), pencil for marking
Cable clips or outdoor-rated zip ties — for running the cable neatly down the pole
A compass app on your phone — to identify true south before you plant your pole

One note on the bracket itself: not all pole mount brackets are created equal. Some are designed to hold only the solar panel; others use a 2-in-1 design that mounts both the solar panel and the Ring camera on the same pole. For yards where you want a completely standalone setup away from your house — a driveway entrance, a garden path, a gate — the 2-in-1 style is often the cleaner solution. The HOLACA 2-in-1 Pole Mounting Bracket is one example of this approach, designed to hold both the Ring Super Solar Panel and the camera on a single outdoor pole mount.

Step 1 — Find the Best Location for Your Pole

This is the most important step, and it's the one most people skip. A few minutes spent on location scouting will save you weeks of disappointing battery life later.

The South-Facing Rule

In the United States, the sun arcs across the southern half of the sky. This means a solar panel tilted toward true south receives the most cumulative sunlight over the course of a day. Open your compass app and identify south. Then look for a location in that general direction that has:

No shade from trees, eaves, or nearby structures between 9 AM and 3 PM
A clear line of sight to the sky (no roof overhangs directly above)
Ground that allows for a stable post installation (avoid very rocky or root-heavy soil)

Cable Length Matters

Ring solar panels typically come with about 13 feet of cable. Measure the distance from your intended pole location to where the camera is mounted. If the distance is greater than 13 feet, you'll need to plan cable routing carefully — running the cable along a fence, through conduit, or up a wall — or reconsider the pole position. Extensions are technically possible but not recommended by Ring, as connector integrity can affect charging.

Consider the Camera's Field of View Too

If you're using a 2-in-1 bracket that mounts both the panel and the camera on the pole, think about what the camera will actually be watching from that position. Pole-mounted cameras work great for wide driveway entrances, garden gates, or open backyard spaces. Just make sure there's no obstructing vegetation that will grow into the frame by mid-summer.

Step 2 — Install Your Pole or Post

If you're attaching the bracket to an existing metal fence post, flagpole, or deck railing, you can skip ahead. But if you're setting a new pole specifically for this setup, here's how to do it right.

Choosing Your Pole Material

Galvanized steel or aluminum poles are your best options outdoors. They resist rust, hold up to wind, and most mounting brackets are sized to fit standard 1-inch or 1.25-inch outer diameter pipes — the same size commonly used for chain-link fence top rails, which are widely available at hardware stores.

Setting the Post Depth

A solar panel catches wind. Even a modest breeze creates lateral force, and over time a shallow post will loosen and tilt. A good rule of thumb: bury at least one-third of the total pole length underground. For a 6-foot pole, that means 2 feet in the ground and 4 feet above. Use quick-setting concrete for a stable, long-lasting base. Let it cure for at least 24 hours before attaching the bracket.

Check for Level

Before the concrete fully sets, use a level to confirm the pole is plumb (perfectly vertical). A tilted pole will make the panel angle harder to set correctly, and it just looks sloppy.

Step 3 — Attach the Pole Mount Bracket

Now for the main event. Most Ring-compatible pole mount brackets use a U-bolt or clamp-style attachment that wraps around the pole and tightens with nuts.

Slide the U-bolt around the pole at your desired height. Aim for a height that puts the solar panel roughly at eye level or just above — typically 5 to 6 feet off the ground. This makes future cleaning and angle adjustments easy without a ladder.
Thread the bracket plate onto the U-bolt ends and hand-tighten the nuts. Don't fully tighten yet — you'll want to rotate and adjust the bracket angle after it's loosely in place.
Rotate the bracket to face true south. Use your compass app to confirm orientation. The solar panel should face as close to true south (not magnetic south — on your phone, enable "true north" if the option exists) as possible.
Set the tilt angle. Most adjustable brackets have a pivot mechanism that lets you tilt the panel up or down. For most of the continental US, a tilt angle of 30° to 45° from horizontal captures the best year-round sun. If you're in a northern state (Minnesota, Michigan, Maine), lean toward 45°. Southern states (Texas, Florida, Arizona) can go closer to 25°–30°. Some brackets have angle markings; others you'll estimate by eye.
Fully tighten all bolts. Use an adjustable wrench to firm up the U-bolt nuts securely. The bracket should not rotate when you push on it.

Step 4 — Mount the Solar Panel to the Bracket

With the bracket secured to the pole, attaching the solar panel itself is usually the quickest part of the whole process.

Most Ring solar panels have a mounting slot or keyhole on the back that slides directly onto the bracket's ball mount or screw post.
Once slid into position, tighten the panel's locking screw to prevent it from rotating or popping loose in wind.
Give the panel a firm shake test. If it moves, re-tighten.

If you're using a 2-in-1 bracket, the camera mount arm will typically attach to a secondary mounting point on the same bracket — usually via a standard Ring-compatible mount that you twist and lock into place, the same motion you'd use when wall-mounting the camera.

Step 5 — Run and Connect the Charging Cable

The solar panel cable needs to travel from the panel to the camera's charging port. Here's how to do it cleanly:

Route the cable down the pole first. Use outdoor-rated cable clips or UV-resistant zip ties every 12 to 18 inches to keep the cable tight against the pole. Loose cables flap in the wind and eventually fatigue at the connector.
If the camera is on a separate wall or structure, continue routing the cable along the fence line or through a low-profile conduit to protect it from UV degradation and physical damage.
Plug the connector into the Ring camera's micro-USB or USB-C port (depending on your camera model). The connector typically has a rubber gasket — make sure it seats fully for a weatherproof connection.
Check the Ring app. Navigate to your device settings and look for the solar panel status indicator. It should show "Connected" within a few minutes if sunlight is present.

Step 6 — Fine-Tune and Test Over the First Week

A Ring solar panel pole mount bracket setup isn't truly finished until you've monitored it for a few days and confirmed the charging is working as expected.

What to Look For in the Ring App

Under your device settings, the solar status should show charging activity on sunny days.
Battery percentage should hold steady or slowly climb over 3–5 sunny days.
If battery percentage keeps dropping despite the panel being connected, revisit your panel's south-facing orientation and shade exposure.

Seasonal Adjustments

The sun's arc changes dramatically between summer and winter. If your bracket allows manual tilt adjustment, consider setting the angle steeper (more vertical) in winter when the sun sits lower in the sky, and flatter in summer when it's high overhead. Even a 10° adjustment can meaningfully improve charging output during shorter winter days.

Clean the Panel Periodically

Pollen, bird droppings, and dust reduce solar panel efficiency more than most people realize. A quick wipe with a damp cloth every month or so keeps output at its peak — especially important in spring when pollen coats everything.

Common Mistakes to Avoid

After walking through the full process, here are the pitfalls I see most often in online communities and support forums:

Mounting the panel on the north side of the house because that's where the camera is. Always prioritize sun exposure for the panel, and run the cable to meet the camera wherever it lives.
Using an undersized or flimsy bracket. Cheap, non-specific brackets often lack the exact fit for Ring's panel footprint, leading to a loose mount and eventual misalignment.
Skipping the cable clip step. A loose cable dangling off a pole will eventually strain the connector and cause charging failures.
Not checking for afternoon shade. A location that looks sunny in the morning might be in deep shadow from 1 PM onward when a neighbor's tree or your own roofline blocks the sun. Scout the spot at multiple times of day before committing.
Forgetting to enable solar in the Ring app. On some Ring camera models, you need to explicitly confirm the solar panel is connected in the device settings before the charging relationship is recognized.

Quick-Reference Setup Checklist

Use this before and after your installation to make sure nothing is missed:

☐ Identified a south-facing location with no shade between 9 AM – 3 PM
☐ Verified cable run distance is within 13 feet (or planned routing for longer runs)
☐ Pole is set at correct depth and cured in concrete
☐ Pole confirmed plumb with a level
☐ Bracket attached at 5–6 ft height, facing true south
☐ Panel tilt angle set appropriately for your latitude (25°–45°)
☐ All bracket bolts firmly tightened and shake-tested
☐ Cable routed down pole with clips every 12–18 inches
☐ Charging cable connected securely to camera port
☐ Solar panel status confirmed "Connected" in Ring app
☐ Battery level monitored over 3–5 sunny days to verify charging

Getting your Ring solar panel pole mount bracket setup right the first time takes a little planning, but the payoff is enormous: a camera that stays powered indefinitely, with no ladder trips every few weeks to drag a battery inside for charging. Take the extra time to find that ideal south-facing spot, set your tilt angle thoughtfully, and cable-manage neatly — and your Ring system will quietly do its job through every season, rain or shine.
